Prime Athletica round double-sided blade sign on a bracket on the brick wall, Ivanhoe

Signage Journal

Prime Athletica came to us for signage for their gym in Ivanhoe.

One part of the job was a round, double-sided blade sign. It sticks out from the brick wall on a bracket, with a face on each side, so it can be read from both directions along the street.

How we made the round blade sign

Every part of this sign was custom made in our Heidelberg West based workshop. Here is how it came together, step by step.

1. The frame. The two faces are 3 mm aluminium discs. The arm is 40 mm aluminium square tube with a welded base plate, drilled for the wall fixings. Short pieces of the same tube are the spacers between the two faces. We welded the arm and the spacers to one disc, then put the second disc on the spacers.

2. The rolled edge. We cut a strip of aluminium, bent it and ran it through a roller to make a ring. The ring covers the edge between the two faces, so the sign reads as one solid piece.

3. Sand, etch, prime and paint. With the sign put together, we applied filler and sanded it smooth. Then we etched the aluminium, so the paint grips the metal. After that came the primer, the undercoat and two top coats.

4. The printed faces. The artwork is digitally printed on polymeric vinyl and laminated. We used print and cut to cut each face as a clean circle, then applied one face to each side of the sign.

5. The install. On site, we found the right position on the brick wall and installed the sign. See our installation service.

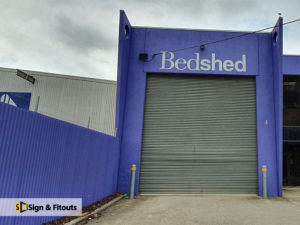

Bedshed 3D letters above a roller door on a purple factory building in Preston

Signage Journal

Bed Shed, purveyors of bedding and bedroom furniture located within the Northland Homemaker Centre in Preston, approached our signage experts to help with their branding.

They had initially planned to paint the building entirely in purple, with white 3D Letters announcing their brand name. We were able to offer a full package consisting of painting, letter fabrication and installation!

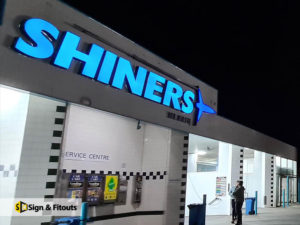

Blue illuminated Shiners letters with star logo on a car wash building at night in Preston

Signage Journal

Shiners Carwash came to Sign and Fitouts seeking restoration for their renowned 3D illuminated Sign. The much-loved bold blue letters had lost their shine over the years.

Initially, Shiners sought our opinion on whether brand new Signage was the best way forward. Wanting the most cost-effective solution for our client, we conducted a thorough inspection of the original sign to determine whether refurbishment was an option. Despite 20 years of wear and tear, the old sign still had potential. We presented both options to our client; refurbishing the existing sign was a far more economical option than creating brand new signage.

We pulled the 3D Letters down and brought them back to life in our Heidelberg West workshop. After a coat of paint, some retouching and a brand-new set of LED lights and bases, Shiners is once again a beacon in Melbourne.

Quality Fresh Meats illuminated 3D letters above a butcher shop counter in Craigieburn

Signage Journal

Quality Fresh Meats in Craigieburn Central approached Sign and Fitouts seeking an eye-catching, bold design that’ll stand out in a busy shopping centre.

We suggested a 3D Illuminated Sign; a foolproof way to stand out from the crowd. The process proved challenging, but the results are outstanding!

Working within the guidelines of a bureaucratic shopping centre can be a headache. The job can only be completed after working hours and requires significant and comprehensive documents to ensure all administrative hurdles are satisfied. Though this process may seem daunting for other signage companies, at Sign and Fitouts we like a challenge!
